Vacuum Conveyors

Brunel Engineering Services manufacturer a range of Vacuum Conveyors in a various sizes.

These provide a hold-down force to keep paper and board products firmly pinned down while they undertake further processing operations like Tape Application, Tipping or Glueing.

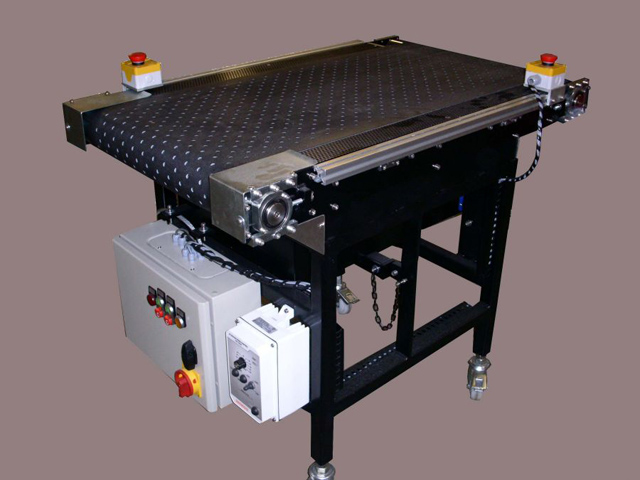

Our smallest has a belt 500mm wide and has a working length of 1mtr.

Standard sizes include;

500 x 1mtr                                   840 x 1.75
500 x 1.25mtr                              840 x 2.5mtr
500 x 2mtr                                   840 x 3.5mtr
500 x 3mtr                                   1100 x 2mtr
500 x 8mtr                                   1200 x 2mtr

We can design and build a different size should you wish, please enquire

Our Vacuum Conveyors are variable speed, typically up to 100 linear m/min, via a simple Turn-Pot control. We use an inverter drive with Digital input option, should you require to control the speed from an external source
Normally single phase supply, however 3 phase is possible.
Every Vacuum Conveyor has an individual start / stop circuit for Conveyor and Vacuum and a Safety circuit with E-Stops.

Vacuum fans can easily be hinged downward to clear any obstructions that may have been carried over. Fans are linked to the safety circuit.

Adjustable for height at each end, the units can be installed out-of-level if desired

Our conveyors are solidly constructed from welded steel frames, you can safely stand on them! We do not use flimsy aluminium frame materials

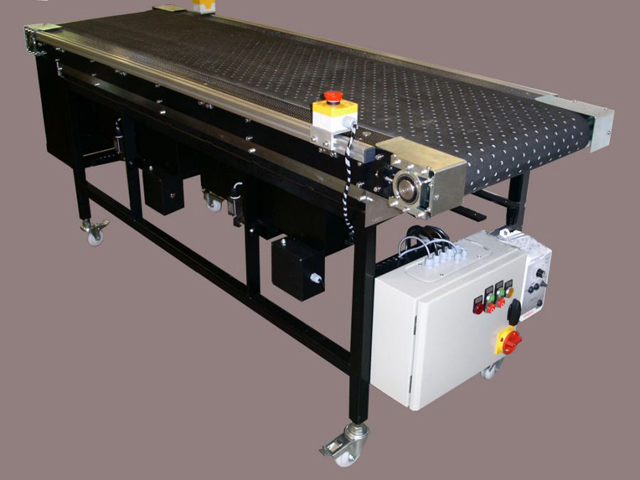

Pictured above is the 840 x 3.5mtr model together with a MFT350ip Friction Feeder

We are currently developing (Oct 18) a three-track Narrow Band Vacuum Conveyor for Bump Turn and Ploughing operations. This will feature on our website when available
