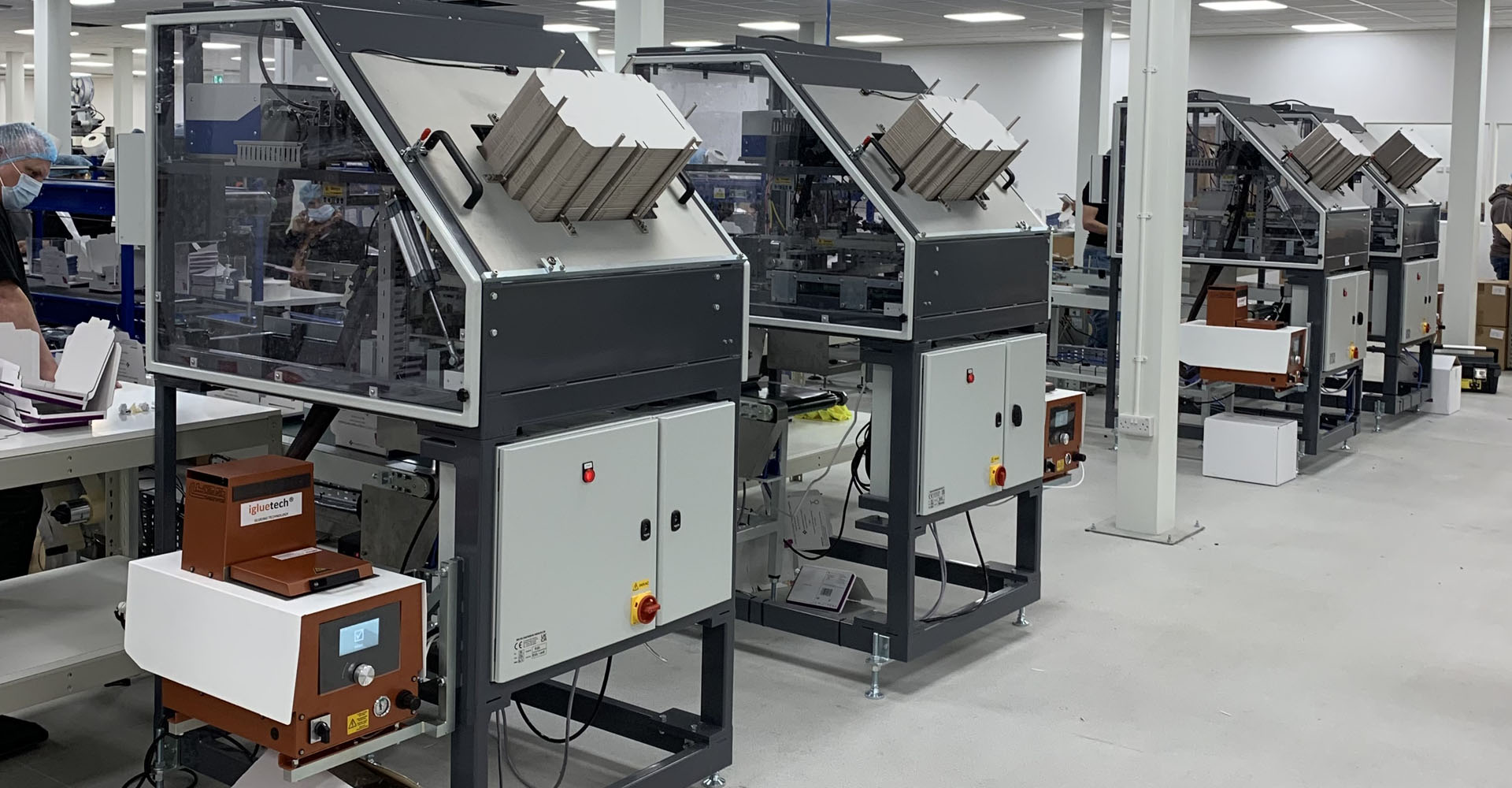

Brunel Engineering Services, Design and Build Tray Erectors in several sizes with output speeds up to 37 glued cartons per minute.

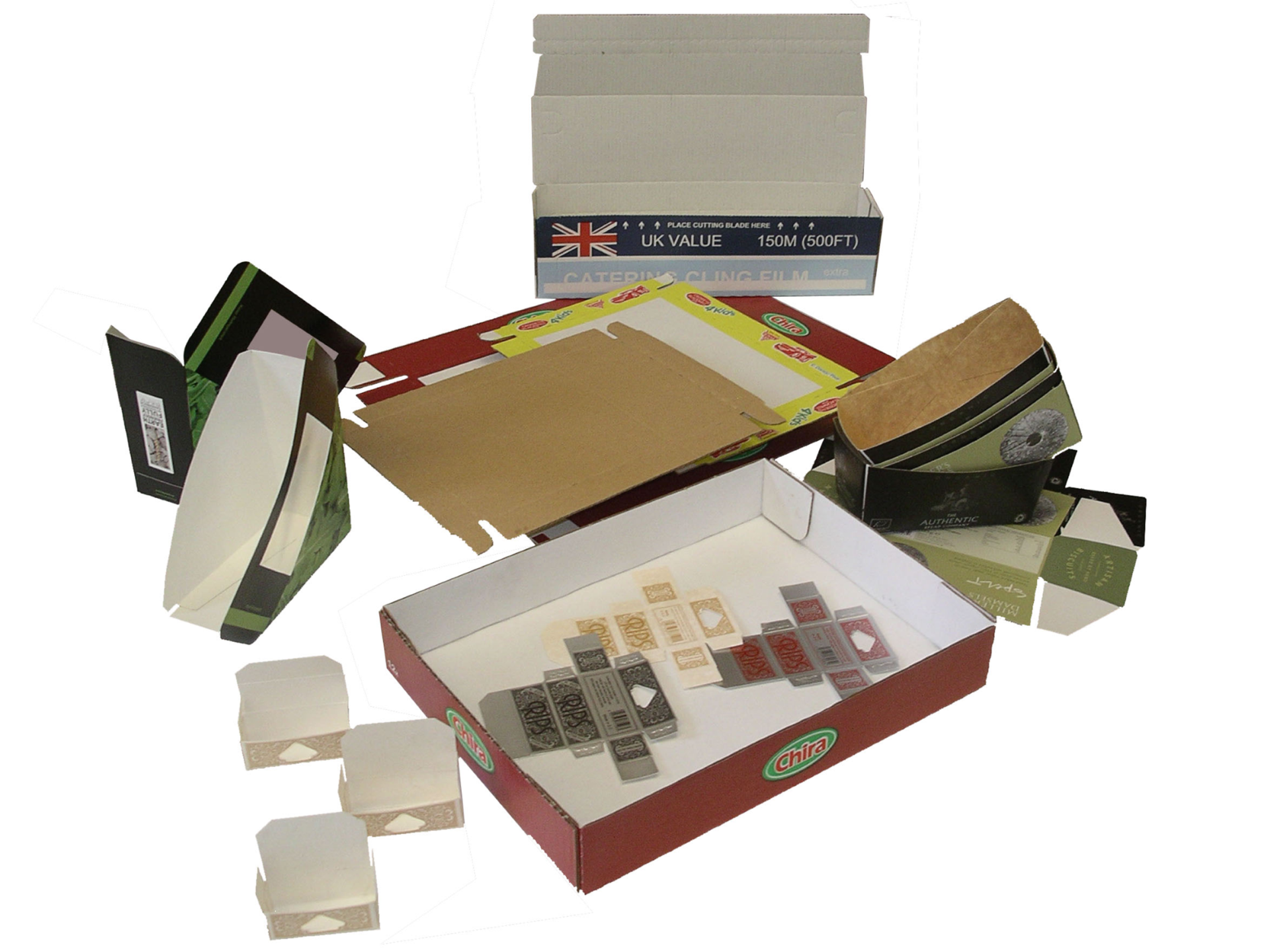

Our Erectors provide an effective means to transform Pre-cut Flat Carton Blanks into formed and glued ready-to-use boxes in virtually any industry.Tray Samples our erector can form

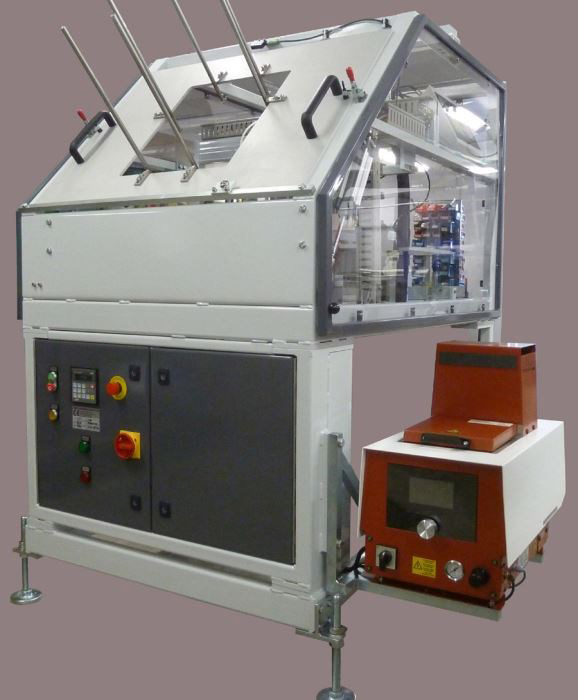

Using pneumatic technology to provide motive power and a PLC to provide sequential control via the integral feedback system, with hinged machine guards that are interlocked to the control system providing electro-pneumatic cut-off should the guards be opened.

The tooling, known as Change Parts, is carton specific and can be changed over in minutes to provide production of other carton sizes, within the capacity of the particular model of machine.

There are two PLC input positions for users to optionally connect either a 24Vdc downstream signal (via interface relay) or a remote operator switch, which can be used to pause the erector.

There are two PLC output positions, one to indicate status 'Running' and one to indicate status 'Stopped', for users to optionally connect to (via interface relay)

The magazine is fitted with a low level sensor which will stop the machine if magazine level falls low.

Cartons are ejected vertically downwards, often on to one of our own plain belt conveyors, or onto a conveyor that forms part of a follow-on processing system. The follow on might be a Carton Filler and Carton Closer sequence. BES can help you with this too.
