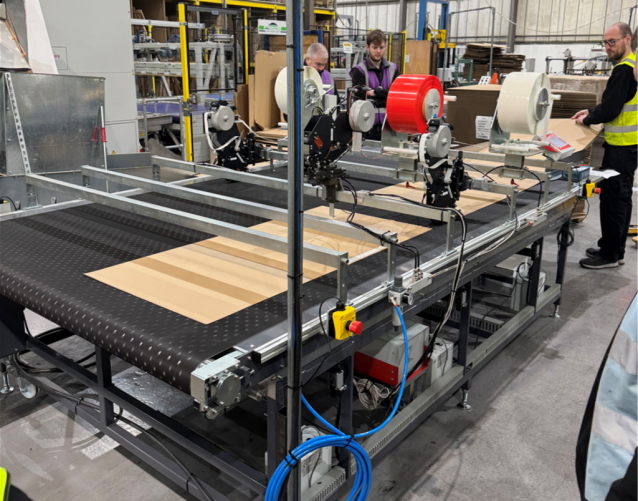

The BES® Manual Taper Table System is a professional-grade e-commerce packaging solution designed to deliver fast, accurate and repeatable tape application to cartons, mailers and flat pack products.
Built around a 3-metre BES® vacuum conveyor, this system allows operators to feed products by hand while maintaining perfect alignment and consistent tape placement — dramatically improving productivity.
This system is ideal for businesses that want industrial performance without full automation.

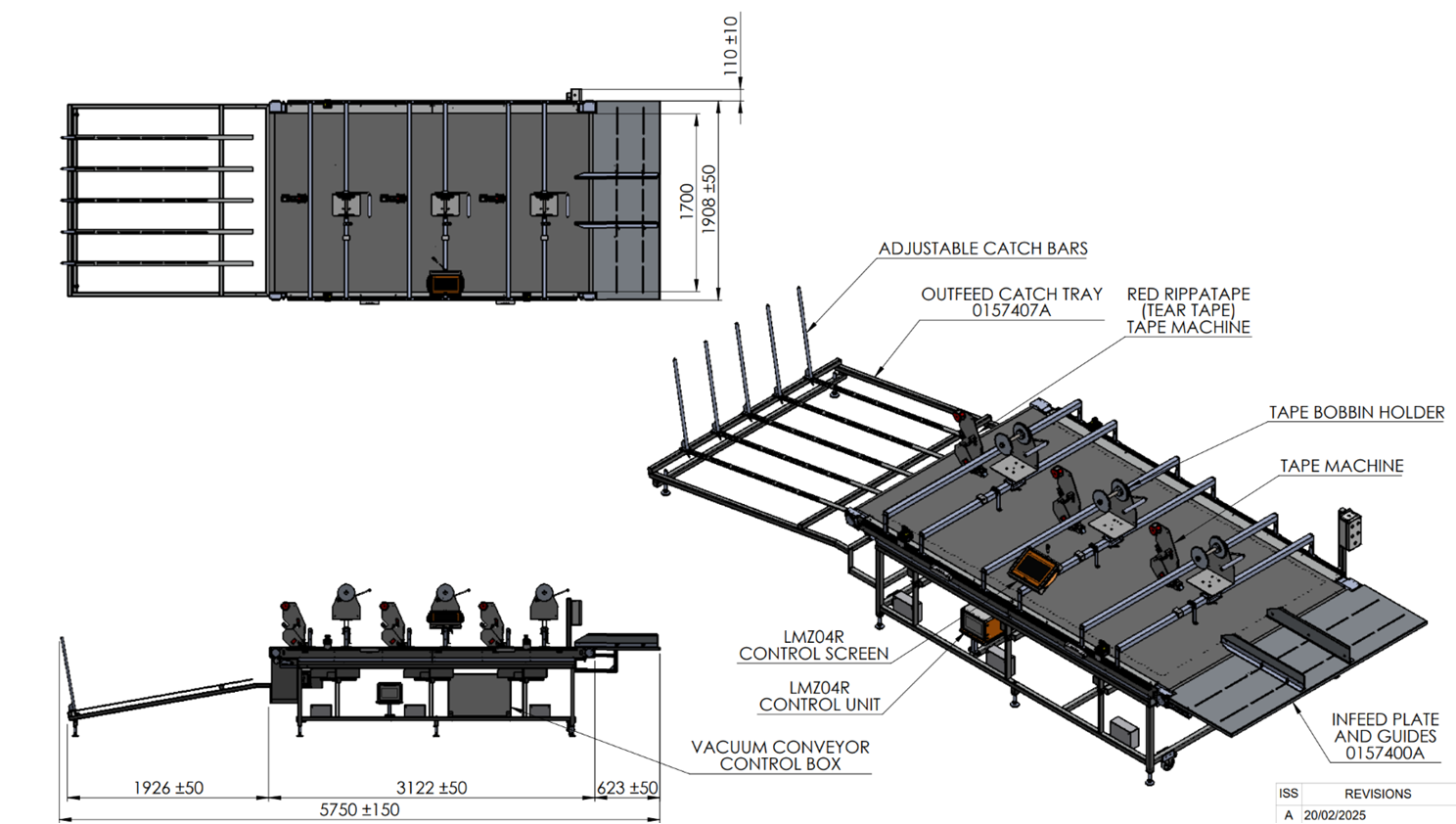

The 1700mm wide x 3000mm long vacuum belt holds products flat and stable, ensuring:
Accurate tape positioning
No product drift
Clean, consistent tape application
A built-in alignment and adjustable stack section allows operators to quickly square up products before feeding, ensuring every pack enters the taping zone correctly.
Supplied with 6 x 40mm belt-mounted brackets, the system is designed to accept:
Two inline tape applicators
Bobbin reel dispensers for long lasting tape rolls
Applying White Fingerlift Double-Sided tape application or Red Rippa Tear Tape.
Additional Tape upgrade capability.
Tape Application Length controlled by the Igluetech® / Zator LMZ04R Pattern Controller Unit, providing:
Simple Tape positioning with intuitive touch screen controller for easy operator use
Reliable industrial automation
Full system integration
E-commerce mailers & book wraps
Subscription box sealing
Flat cartons and folders
Print finishing
Fulfilment packing stations
✔ 5–10x faster than hand taping
✔ Clean, consistent tape placement
✔ Professional packaging appearance
✔ Upgradeable to full automation
✔ Designed & built in the UK
Automatic Tape Application for Taper Tables
The BES® Double-Sided Tape Applicator adds high-precision tape placement to any BES Taper Table System, allowing cartons, mailers and packaging to be Taped for peel & seal or Rippa Tape, automatically and consistently, delivering a stronger, cleaner and more professional finish.
BES® TM01 Double-Sided Tape Applicator
TM93 Bobbin Reel Dispenser
TM80 Mounting Bracket
TM137 Control Box
This complete kit integrates seamlessly with both Manual and Automatic Taper Table systems.
Applies tape in exactly the same position on every product, improving:
Seal strength
Pack appearance
Brand presentation
Designed for continuous running at production speeds with minimal maintenance.
Built for factory environments with proven BES® engineering and igluetech® support.
