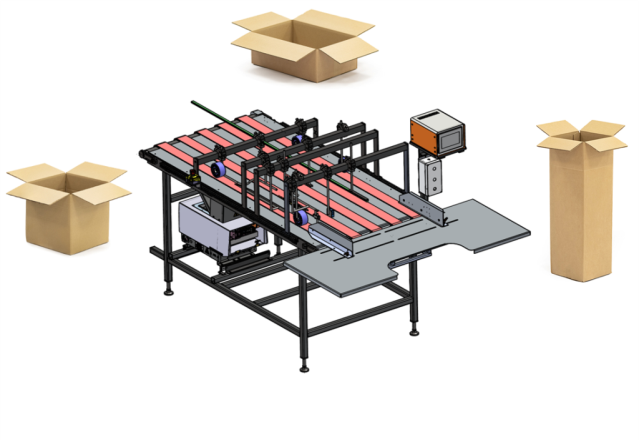

The BES® Side Seam Gluer is a robust and versatile semi-automatic solution for gluing and sealing corrugated boxes, cartons and cases.
Designed for companies looking for a flexible alternative to setting up a conventional folder-gluer, the BES Side Seam Gluer provides a simple and efficient way to produce side-seam cartons across a wide range of sizes.
Ideal for short and medium production runs, the machine is quick to set up and easy to operate, making it particularly suited to packaging manufacturers, printers and converters handling a wide variety of carton styles and batch sizes.
The BES Side Seam Gluer is designed around ease of use and flexibility.
Operators can quickly adjust the machine to accommodate different carton widths, allowing multiple box formats to be processed on the same machine without lengthy changeovers.
The controlled belt and roller system transports the carton through the gluing process, providing consistent positioning and reliable adhesive application.
The result is a straightforward, dependable solution for businesses that need to glue side-seam cartons efficiently without dedicating valuable production time to setting up a larger automated folder-gluer.
With adjustable working widths available in 800mm, 1200mm and 1600mm, the BES Side Seam Gluer can be configured to suit different production requirements.
The machine features adjustable roller centres and a variable belt speed from 5 to 25 metres per minute, giving operators greater control over the carton as it passes through the gluing process.
This flexibility makes the BES Side Seam Gluer suitable for a broad range of corrugated packaging applications.
For smaller batches, setting up a conventional folder-gluer can take valuable production time.
The BES Side Seam Gluer provides an alternative approach.
Its straightforward design allows operators to set up the machine for a particular carton format and begin production quickly, making it particularly useful for short runs, repeat orders, sampling and specialist carton production.
It can also be used as a dedicated offline gluing station, freeing your main folder-gluer for larger production orders.
Built for industrial packaging applications, the BES Side Seam Gluer combines a robust mechanical design with simple controls to provide reliable day-to-day operation.
The machine is designed to be easy to operate and maintain, helping to minimise downtime and keep production moving.
| Specification | BES® Side Seam Gluer |
|---|---|
| Working Width | 800mm, 1200mm or 1600mm |
| Roller Centres | 2000mm |
| Machine Height | 970mm – 1100mm |
| Belt Speed | 5 – 25 m/min |
| Electrical Supply | 230VAC, 50/60Hz, 10 Amp |
| Operation | Semi-automatic |
| Application | Corrugated carton side-seam gluing |
The BES Side Seam Gluer is suitable for a wide variety of corrugated packaging applications, including:
Not every carton order justifies setting up a full folder-gluer.
The BES Side Seam Gluer provides a cost-effective, flexible and easy-to-use solution for businesses that need to process smaller or more varied production runs.
Whether you are looking to increase production capacity, reduce folder-gluer setup time or introduce an offline side-seam gluing process, the BES Side Seam Gluer offers a practical solution.
The BES Side Seam Gluer is manufactured and supplied by Brunel Engineering Services, specialists in machinery and automation solutions for the corrugated packaging industry.
We can also provide adhesive application equipment and hot melt glue systems to suit your application, helping you create a complete side-seam gluing solution from one supplier.
Speak to the Brunel Engineering Services team to discuss your carton sizes, production requirements and adhesive application needs.
Contact us today to find out more about the BES® Side Seam Gluer or to discuss your application.
