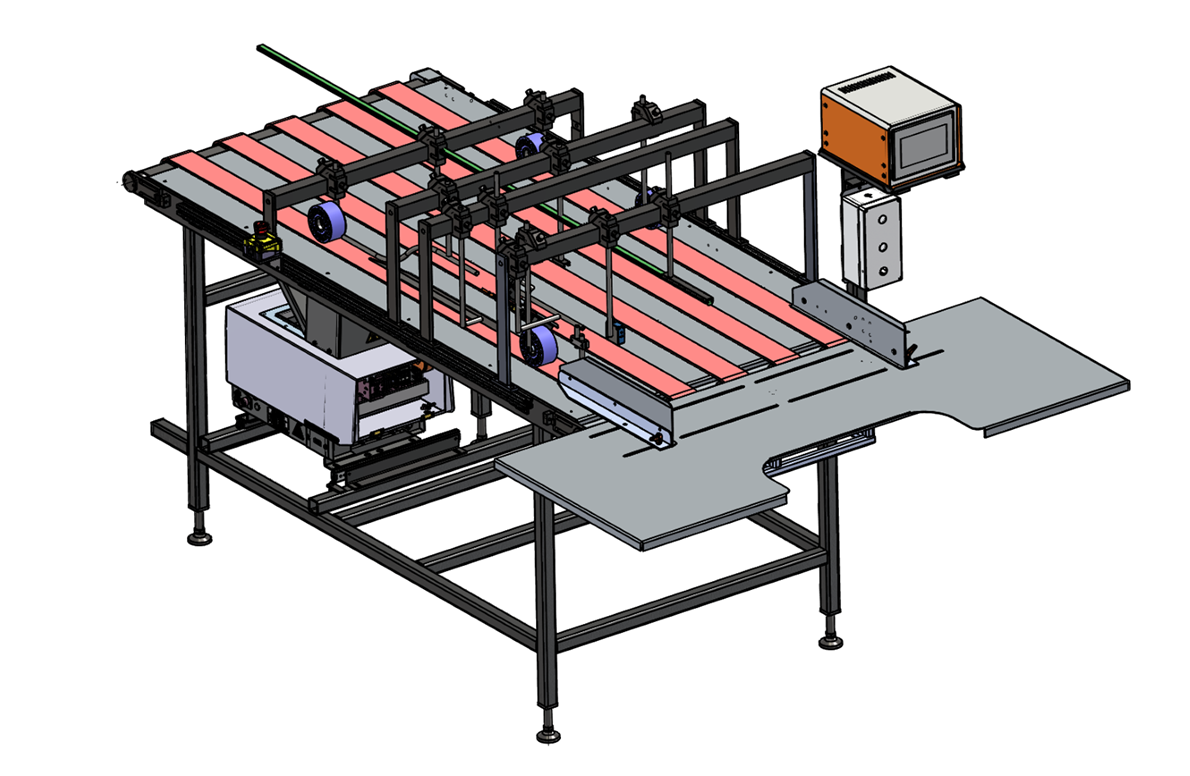

BES Semi-Automatic Box Side Seam Glueing Machine

The BES Side Seam Glueing Machine is a robust semi-automatic offline solution designed to automate the folding, glueing, and sealing of corrugated & E-Commerce box side seams. Manufactured in the UK by Brunel Engineering Services, this versatile machine provides a fast, reliable and consistent method of producing professionally finished boxes.

By replacing repetitive manual glueing operations, the BES Side Seam Gluer significantly improves production efficiency, reduces labour requirements and delivers consistently high-quality box presentation.

Designed for Efficient Box Production

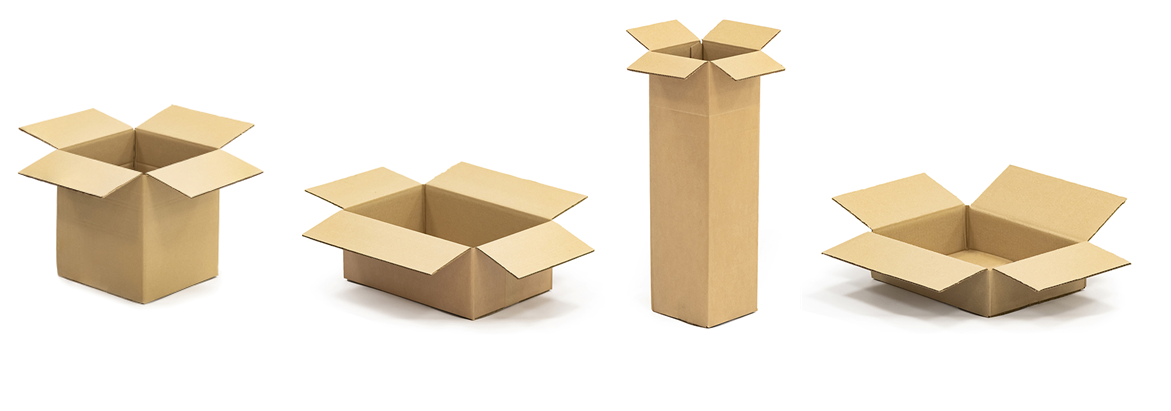

The BES Side Seam Gluer has been engineered to streamline the production of Corrugated & E-Commerce boxes by automatically transporting, glueing, folding and compressing the side seam in one continuous process.

Suitable for a wide variety of box styles, the machine can be quickly adjusted to accommodate different box sizes, with the ability to handle formed box widths up to 1600mm.

Whether producing short production runs or high-volume batches, the machine delivers reliable and repeatable results with minimal operator input.

How the Side Seam Glueing Machine Works

The operating process is simple, efficient and highly repeatable:

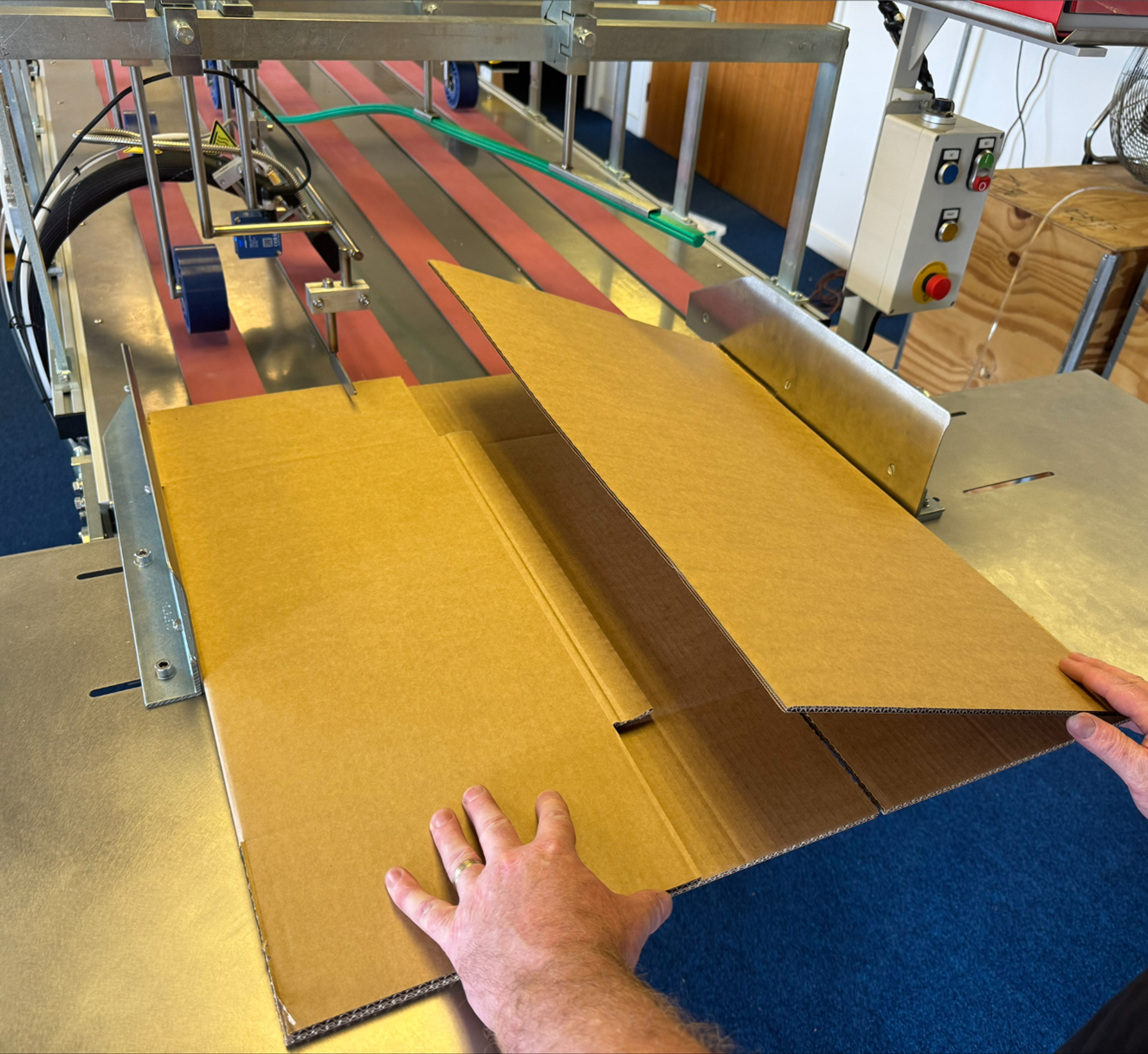

1. The operator manually places the corrugated box into the conveyor infeed.

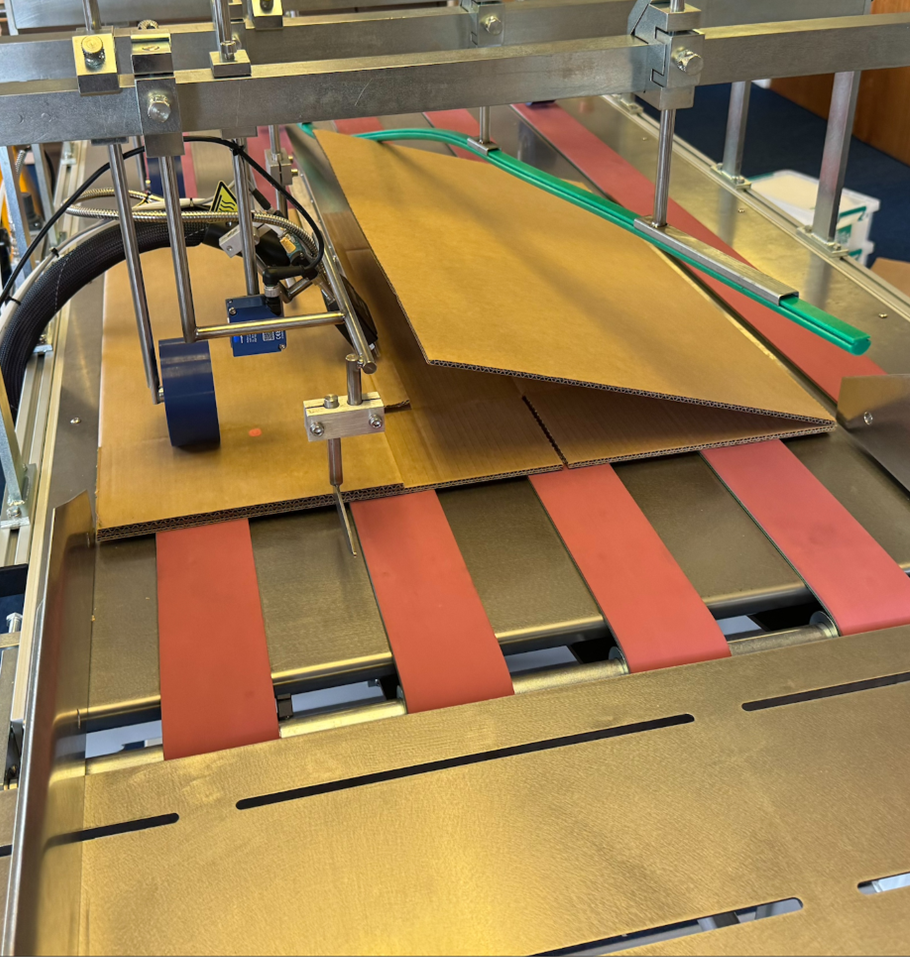

2. The conveyor automatically transports the box through the machine.

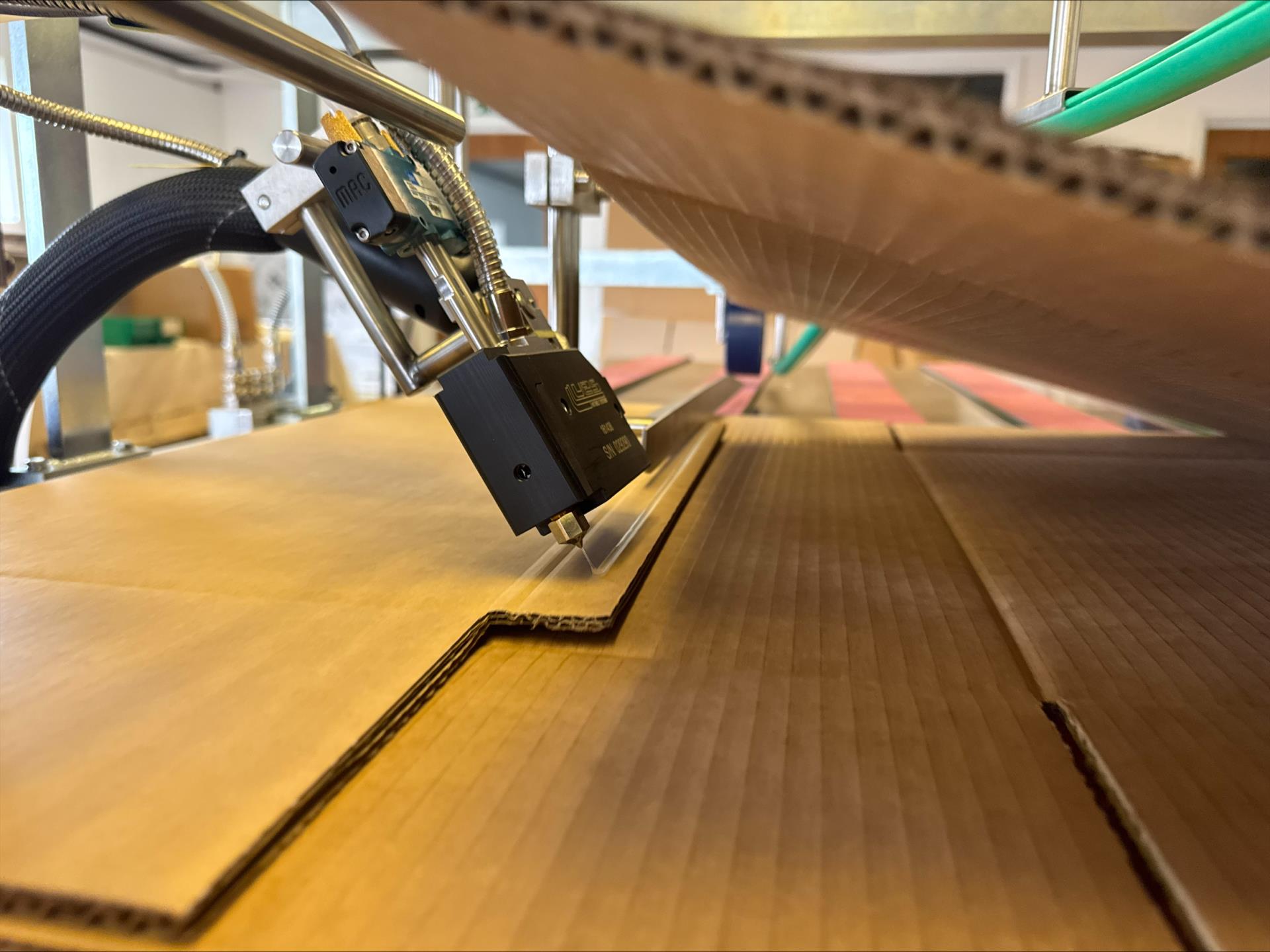

3. A precisely controlled bead of hot melt adhesive is applied to the side seam.

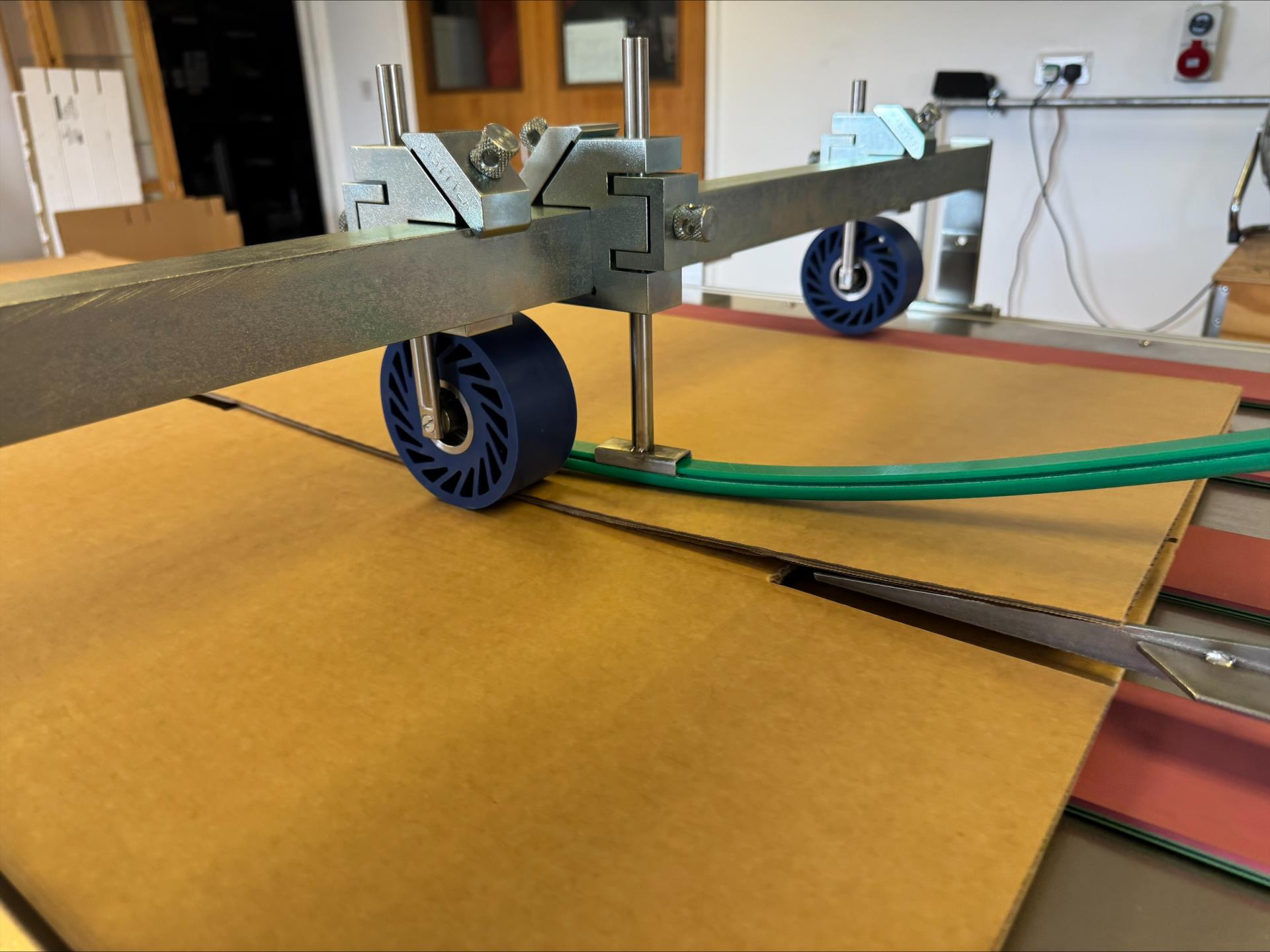

4. The glue flap is automatically folded into position.

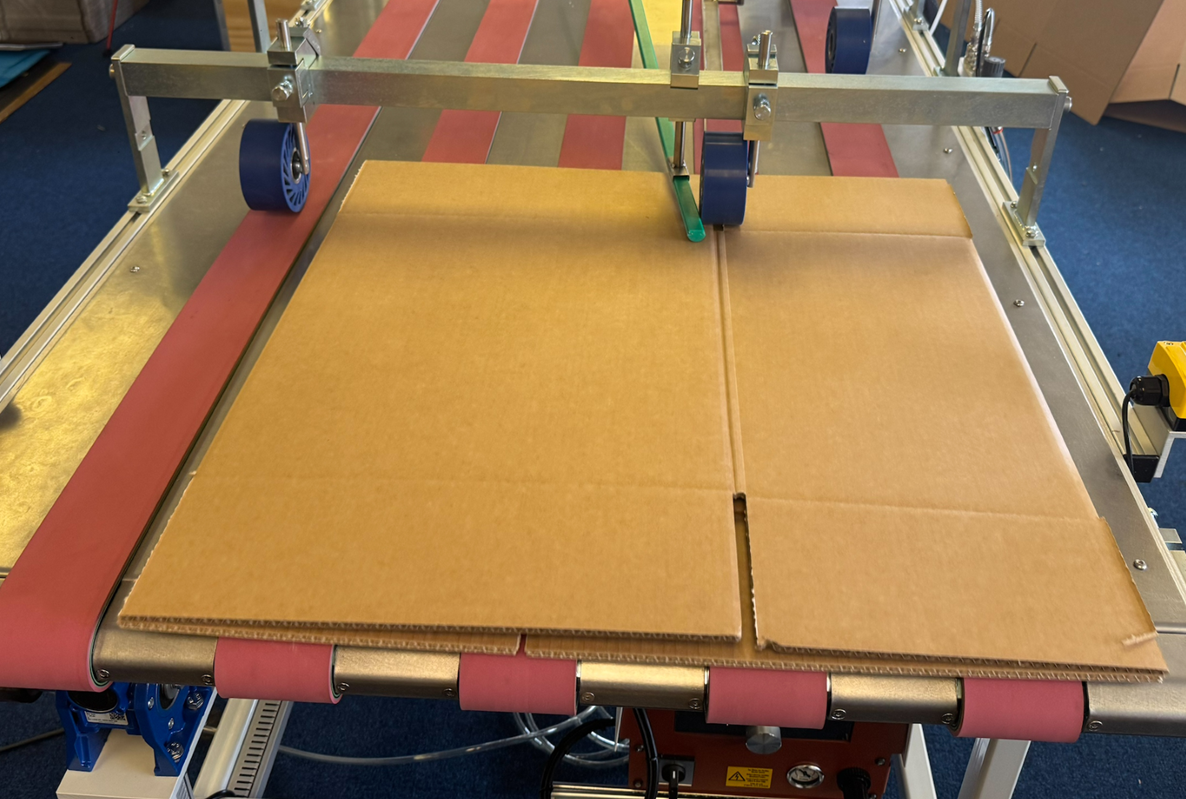

5. The box passes through a compression section to ensure a strong, secure bond before being discharged onto the catch tray or optional outfeed conveyor.

This controlled process ensures every box is accurately glued and consistently finished.

Key Benefits

• Increased production throughput
• Consistent and accurate hot melt adhesive application
• Improved finished box appearance
• Reduced manual labour and operator fatigue
• Reliable side seam sealing for stronger boxes
• Quick and simple adjustment for different box sizes
• Built for continuous industrial operation
• Designed and manufactured in the UK
• Full installation, commissioning and after-sales support

Machine Features

The BES Side Seam Glueing Machine is available in a range of standard working widths and can be configured to suit individual production requirements.

Features include:

• Standard working widths of 800mm, 1200mm or 1600mm
• 2000mm conveyor length between roller centres
• Adjustable working height from 970mm to 1100mm
• Electronically variable belt speed from 5–25 metres per minute
• Optional swivel-locking castors and adjustable levelling feet
• Integrated aluminium extrusion mounting system
• Configurable for inside or outside glue flap applications

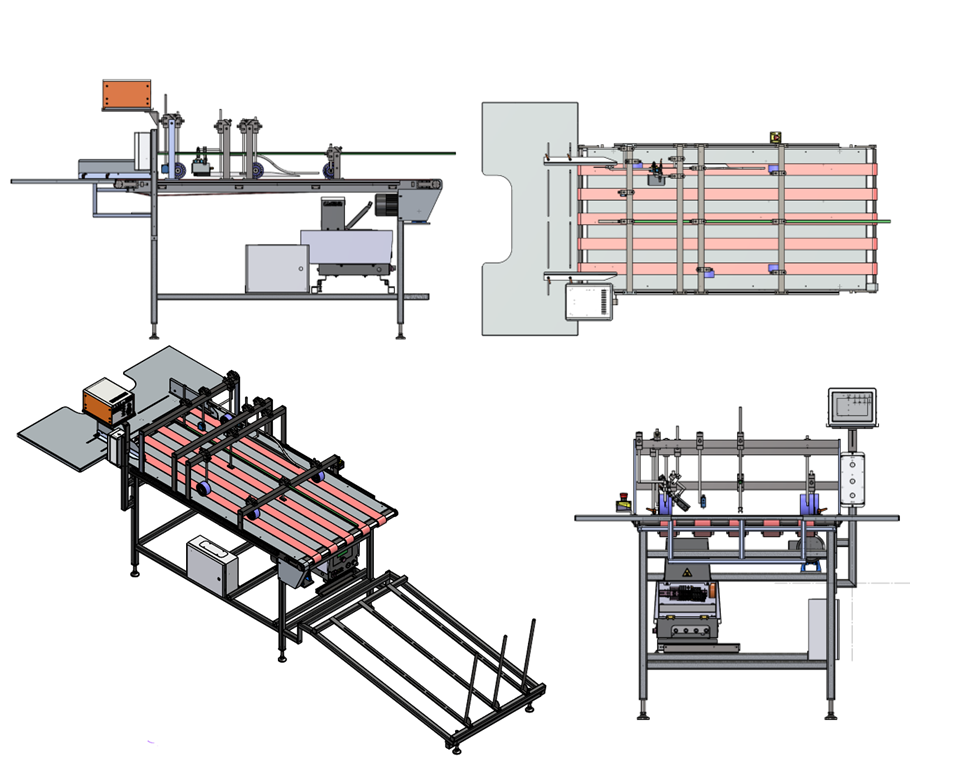

• Optional catch tray or shingle conveyor outfeed
• Comprehensive safety system with emergency stop controls
• 230V single-phase electrical supply

Built for Flexible Manufacturing

Every production environment is different. That's why the BES Side Seam Gluer has been designed with flexibility in mind.

The machine can be supplied as a complete standalone offline gluing solution and offers rapid format changeovers for different box sizes. Optional transport attachments and conveyor configurations are available to integrate seamlessly into existing packaging operations.

Our experienced engineering team can also tailor the system to meet specific production requirements.

Typical Applications

The BES Side Seam Glueing Machine is ideal for:

• Corrugated box manufacturers
• E-commerce packaging
• Contract packing companies
• Print finishing operations
• Transit packaging production
• Industrial packaging manufacturers
• Protective packaging solutions
• Bespoke corrugated packaging

Why Choose Brunel Engineering Services?

With decades of experience designing and manufacturing bespoke packaging automation equipment, Brunel Engineering Services supplies reliable machinery that is built for long-term industrial performance.

Every machine is designed and manufactured in the UK using high-quality components and is backed by expert installation, operator training and comprehensive after-sales support from our dedicated engineering team.

Request a Demonstration

See how the BES Side Seam Gluing Machine can improve your production efficiency.

Contact Brunel Engineering Services today to arrange a product demonstration, discuss your application or request a quotation tailored to your production requirements.
