Description

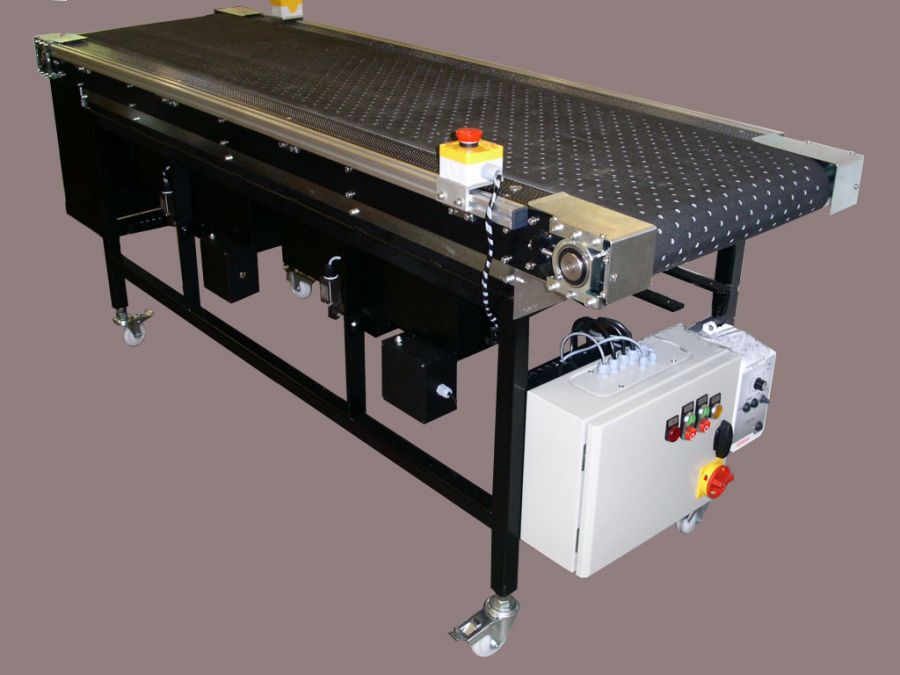

Brunel 500mm wide x 2m long Vacuum Conveyor
The Brunel Engineering Services 500mm x 2m Vacuum Conveyor is designed to deliver reliable product handling and consistent hold-down performance for paper and board applications. Ideal for high-speed production environments, this conveyor ensures materials remain securely positioned during downstream processes such as tape application, gluing, and tipping.
Precision Hold-Down Performance
Equipped with a powerful triple-fan vacuum system, this conveyor provides a consistent hold-down force to keep lightweight or unstable materials firmly in place. This ensures accurate processing, reduces waste, and improves overall production quality.
Flexible Application Integration
This conveyor is perfectly suited for integration with:
- Reel-fed two-sided tape applicators
- Glue Application Systems
- Pick & Place Robotic systems
- Friction feeders mounted above the conveyor
Its adaptable design makes it a versatile solution across a wide range of print, packaging, and converting applications.
Variable Speed Control
The electronically controlled variable speed drive allows operation between 20 to 60 metres per minute, with capability up to 100 m/min depending on application requirements. This provides full control to match your production line speed.
User-Friendly Operation
- Independent start/stop controls for both conveyor and vacuum system
- Simple push-button interface for ease of use
- Quick access hinged vacuum fans for fast obstruction clearance and minimal downtime
Robust Safety Features
Safety is built into every aspect of the design:
- Dual Emergency Stop (E-Stop) pushbuttons
- Interlocked fan casings with manual reset functionality
- Fully integrated safety circuit linking all critical components
Adjustable & Mobile Design
- Height adjustable from 815mm to 970mm
- Can be installed level or inclined end-to-end
- Available with swivel locking castors or adjustable levelling feet for flexible installation

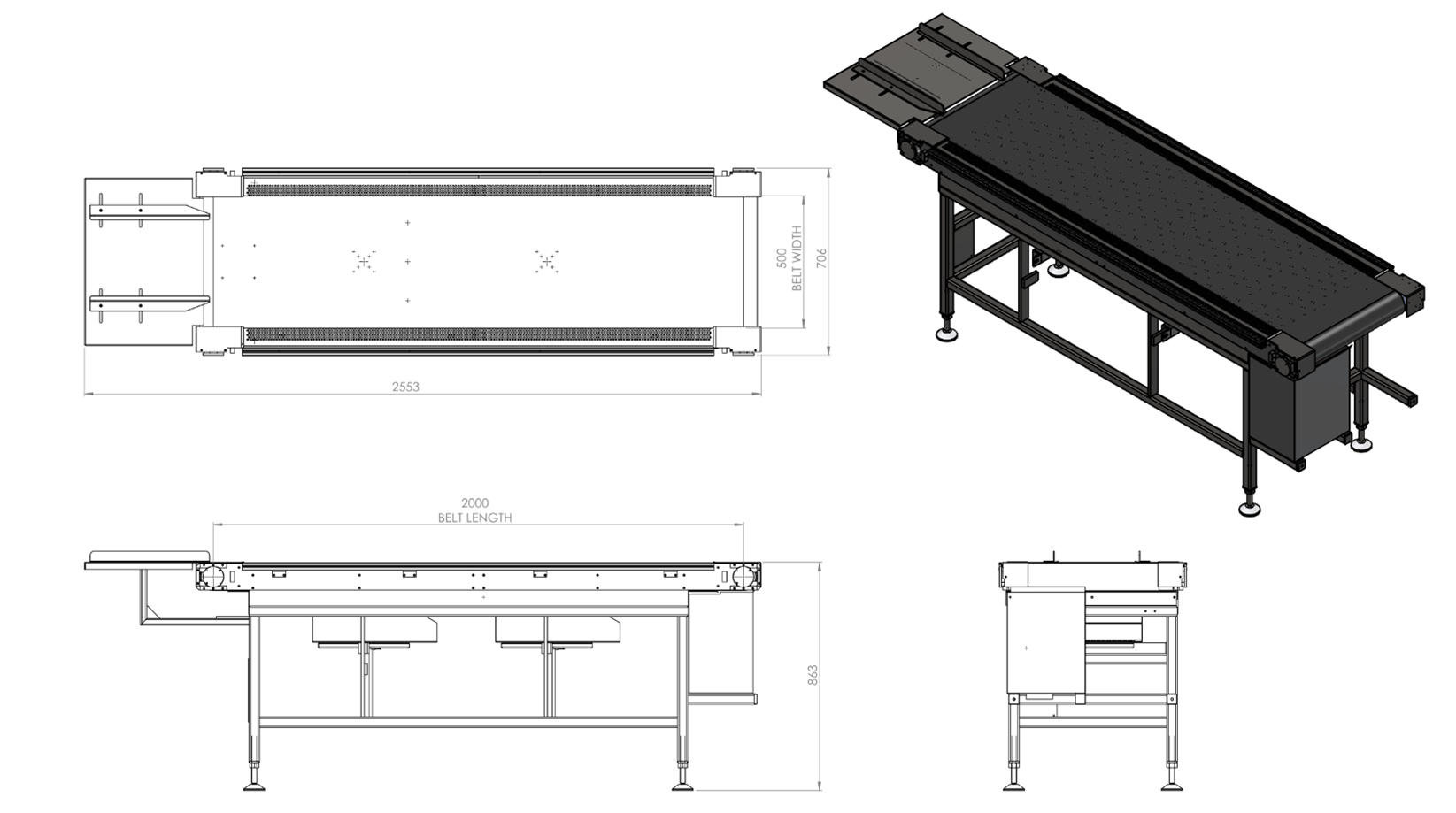

Technical Specifications
- Belt Size: 2000mm roller centres x 500mm width
- Overall Dimensions: 2150mm (L) x 700mm (W) (excluding optional infeed/outfeed)
- Height Range: 815mm – 970mm
- Belt Speed: 20–60 m/min (electronically variable)
- Maximum Speed Capability: Up to 100 m/min (application dependent)
- Electrical Supply: 230V AC, 50/60Hz, 10 Amp
- Control: Separate on/off pushbuttons for conveyor and vacuum fans
- Mobility Options: Locking castors or levelling feet
Why Choose Brunel Vacuum Conveyors?
- Improved product stability and accuracy
- Reduced misfeeds and production waste
- Flexible integration into existing lines
- Durable, low-maintenance engineering
- Designed for the demands of modern print and packaging environments
